Hospital Furniture

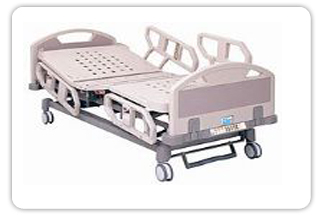

    Intensive Care Electric Bed:

    Standard Accessories:

    • I.V. Pole.
    • 5' Caster Central Brake System.
    • Charge set.
    • Rechargeable Battery
    • Electric CPR Control

    Dimension:

    • Overall Size (Siderail Up) L 223 x W 109 cm
    • Overall size (Siderail Stored) L 223 x W 96 cm
    • Sleeping surface L 194 x W 91.5 cm
    Optional Accessories:

    • Corner Bumper
    • Mattress
    • Pilow
    • Dining Table
    • 0.5m3 Oxygen Bottle Holder
    • Traction Frame System
    • Chest bottle holder

    Positioning:

    • Hi – Low range 45 – 75 cm
    • Back rest 0 - 75
    • Knee Gatch 0 - 40
    • Max. Weight capacity 230 kgs(500lbs)

    Electric Standard:

    • Voltage 220 – 240/100 – 120 VAC 50/60 Hz

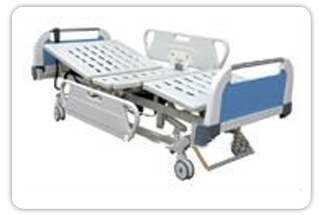

    Multi function Electric Bed:

    Dimension

    • Overall Size (Siderail Up) L 217 x W 108 cm
    • Overall size (Siderail Stored) L 217 x W 95 cm
    • Sleeping surface L 194 x W 91.5 cm

    Standard Accessories:

    • Charge set. - 1 ST
    • Rechargeable Battery – 1ST
    • I.V. Pole. – 1PC

Positioning:

• Hi – Low range 48 – 78 cm
• Back rest 0 – 75o
• Knee Gatch 0 – 40o
• Trend/Reverse Track 0 ± 12
• Max. Weight capacity 230 kgs (500lbs)

Electric Standard:

• Voltage 220 – 240/100 – 120 VAC 50/60 Hz

Optional Accessories:

• Mattress
• Dining Table
• 0.5m3 Oxygen Bottle Holder
• Medical Record Folder
• Back Rest Angle Indicator

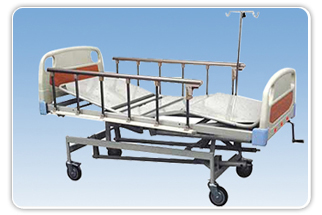

    ICU Bed Mechanically (ABS Panel)

    • Frame work made of rectangular M.S. Tube.
    • 4 section top made of perforated MS sheet.
    • Backrest, knee rest , TB/RTB and Hi – Lo Positions manoeuvred by separate screw from foot end.
    • ABS moulded head & foot panel.
    • Collapsible type safety side railings : MS Powder Coated horizontal tubes fixed to aluminium alloy end brackets. Easily detachable.
    • Telescope IV Rod with four locations.
    • Bed mounted on 125 mm dia castor two with brakes.
    • Overall size : 210 L x 90 W x 60 – 80 H cms.
    • Finish : Epoxy Power Coated

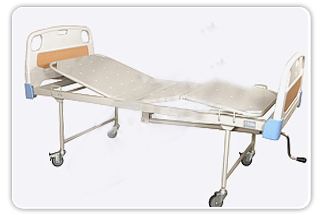

    Hospital Fowler Bed (ABS Panel)

    • Frame work made of rectangular M.S. Tube.
    • 4 section top made of perforated MS sheet.
    • Backrest, knee rest Positions manoeuvred by separate screw from foot end.
    • ABS moulded head & foot panel.
    • Four locations for IV Rod.
    • Bed mounted on 100 mm dia castor two with brakes.
    • Overall size : 206L x 90 W x 60H cms.
    • Finish : Epoxy Power Coated

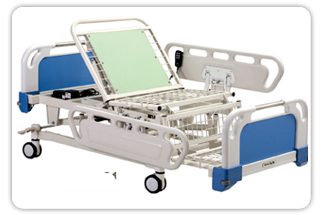

    ICU Multi Function Electric Bed (With Chair Position)

    The main information of Bed:

    • Rated voltage - 220V
    • Rated current - 8A
    • Bed Width – 950 mm
    • Bed Length – 2155 mm
    • The lowest height of the whole Bed - 570 mm
    • Bed Size – 300 =+/-10 mm
    • Back length of the foot board - 900 x 1880 mm
    • Size of the mattress - 15 +/-2o
    • Up inclination down inclination – 15 +/-2o
    • Head up angle - 75 +/-5o
    • Maximum head down angle in emergency – 85 +/-5o
    • Foot down angle – 12+/-2o
    • Keep up angle
    • Weighing ability – 170 kg
    • Temperature of working environment – 5 – 40oC
    • Overall Approx.Size – L 2155 x W 950 x H 570 – 780 mm

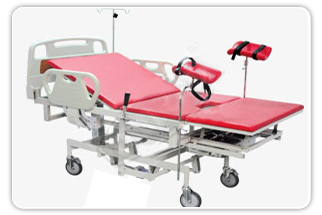

    Labour Delivery Room Bed (Hydraulic)

    • Overall size : 1900 mm L x 900 mm W x 600 – 800 mm H
    • Tubular frame work mounted on 125 mm dia castor two with brakes.
    • Three section top made of MS pipe with fixed cushioned mattress.
    • Trendlenburg / Reverse Trendlenburg positions adjustment throuogh gear mechanism.
    • Height adjustment through imported hydraulic pump.
    • Back section adjustment through ratchet system.
    • Leg end section can slide under the main section.
    • Provided with a pair of Upholstery Lithonomy positions.
    • SS Telescopic IV Rod.
    • Detachable SS Tray.

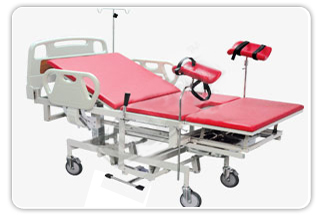

    Labour Delivery Room Bed (Electric)

    • Overall size : 1880 mm L x 900 mm W x 600 – 800 mm H
    • Tubular frame work mounted on 125 mm dia castor two with brakes.
    • Three section top made of MS pipe with fixed cushioned mattress.
    • Trendlenburg / Reverse Trendlenburg positions, height adjustment, back section adjustment through electric actuator system.
    • Leg end section can slide under the main section.
    • Provided with a pair of Upholstery Lithonomy position.
    • SS Telescopic IV Rod.
    • Detachable SS Tray.

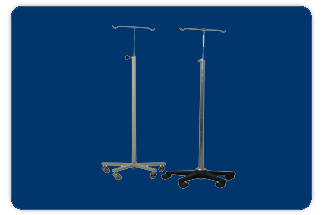

    Saline Stand:

    • 5 pronged base fitted with 5 cm dia castors.
    • 12 mm S.S.Adjustable double hook I.V.Rod
    • To hold I.V.Rod at one fixed height by knob.
    • A – Plastic Base with ms/ss pipe.
    • B – S.S.Base with SS pipe.
    • C – M.S.Base with MS pipe.

    ICU Bed – Four Function (X – ray permissible back rest)

    • Size : 2140 x 940 x 570 / 780 mm
    • Completely motorized
    • Bed board in weld mesh , epoxy powder coated.
    • Provision for I.V Pole.
    • Radiolucent back rest for X – Ray permissibility.
    • Railing (set of 2) in high strength in engineering plastic (ABS).
    • Head & foot end bows in high strength engineering plastic, easily detachable.
    • Urine bag hook provision on both sides.
    • Central locking castors in high strength engineering plastic.
